Hexmesh​

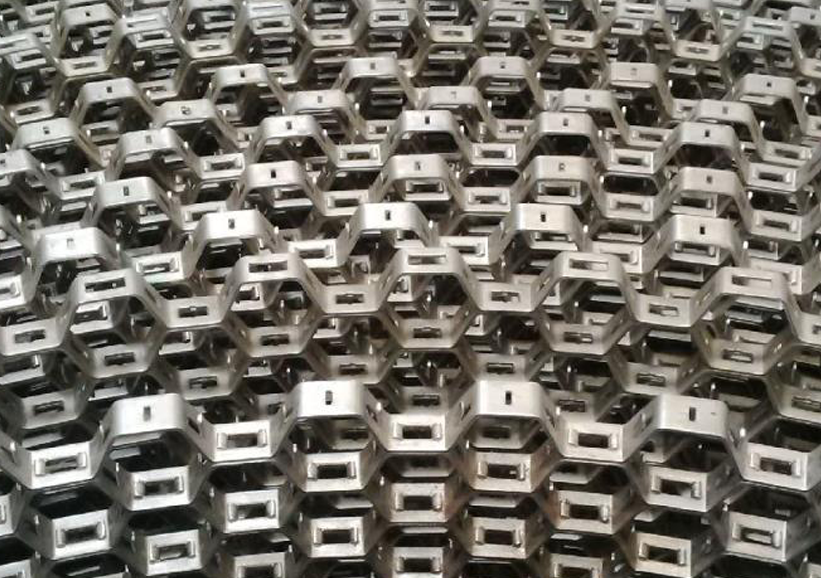

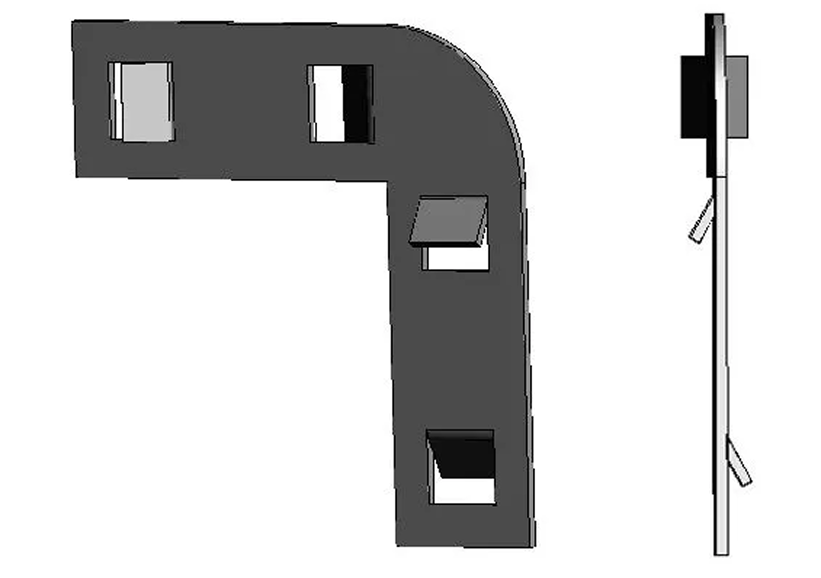

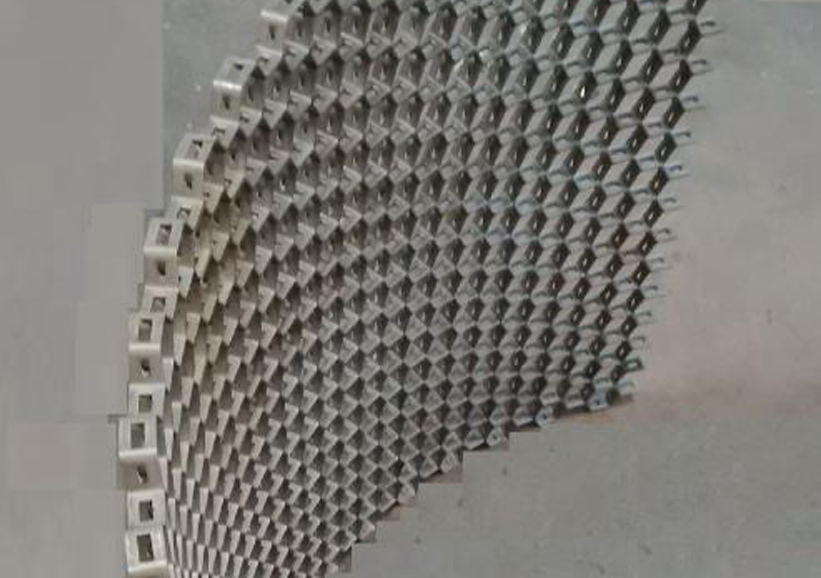

Our Hexmetal (Hexmesh) is a unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories. Though it is predominantly used in FCCU applications, it is one of the best product for selected refractory applications. We supply all Hexmesh accessories such as End Tab, Variable Tab, Radius Tab etc in various grades.
- Superior retention for erosion resistant refractories
- Aids erosion resistance
- Specified by name in the Refining and Petrochemical industries
- Manufacturer and install options
- Used in over 60 countries worldwide and still arguably the best
- British manufactured to client specification
- Long life expectancy
- Manufacturer and install options
Applications for Metal / Wire hex mesh are used in :
Duct Linings, Cyclones, Dryers, Cat Crackers, Reactors, Tanks Stacks, Fan housing, Loading docks And other areas where monolithic linings are used.
Different Types of Hexmesh

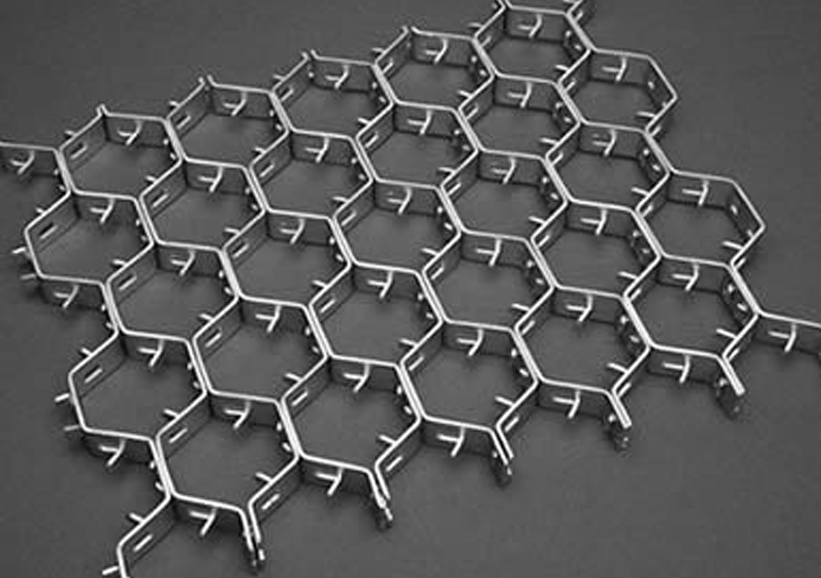

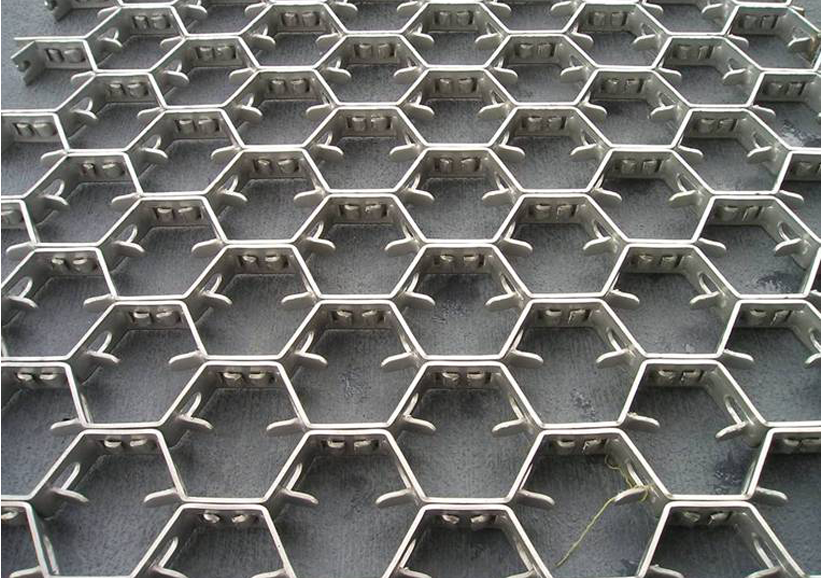

- L type mesh – this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
- H type mesh – instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.

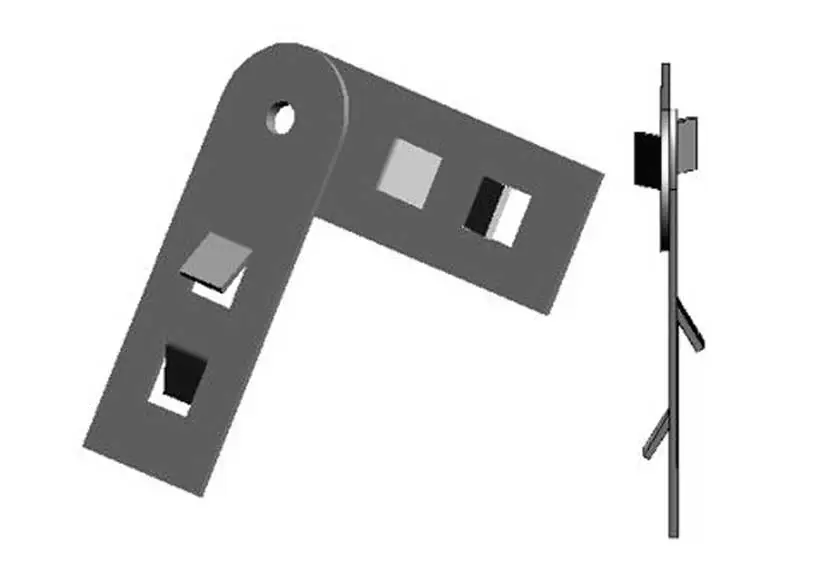

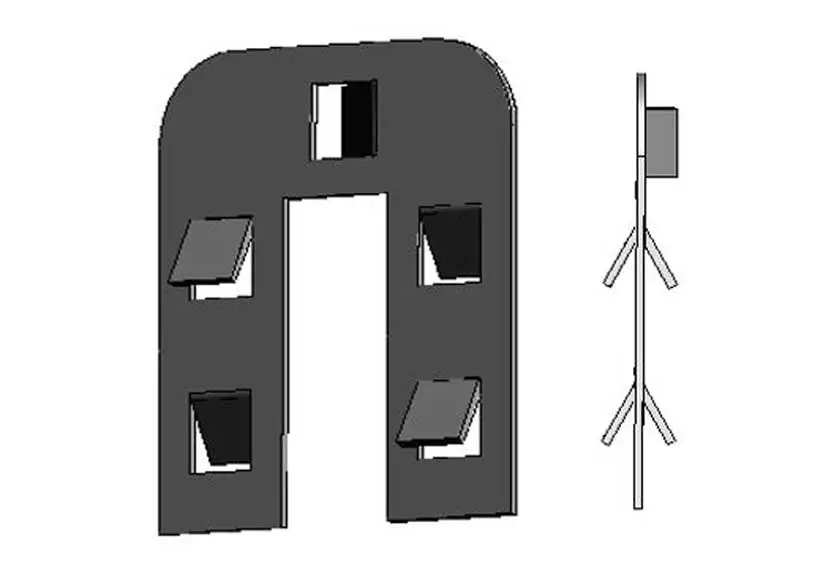

- Punch tabs

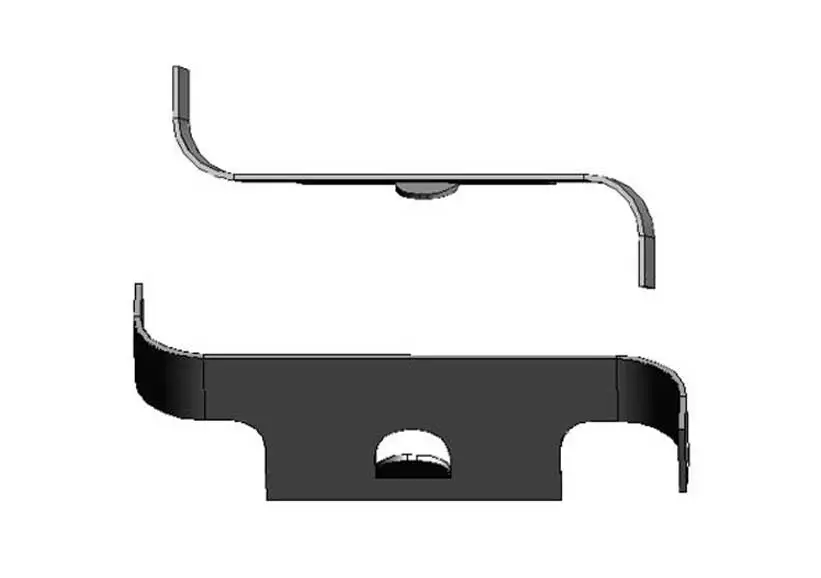

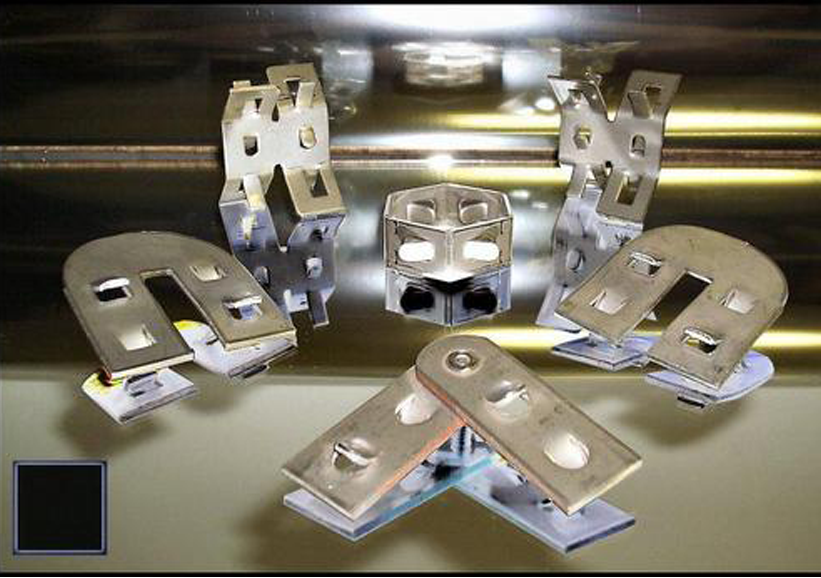

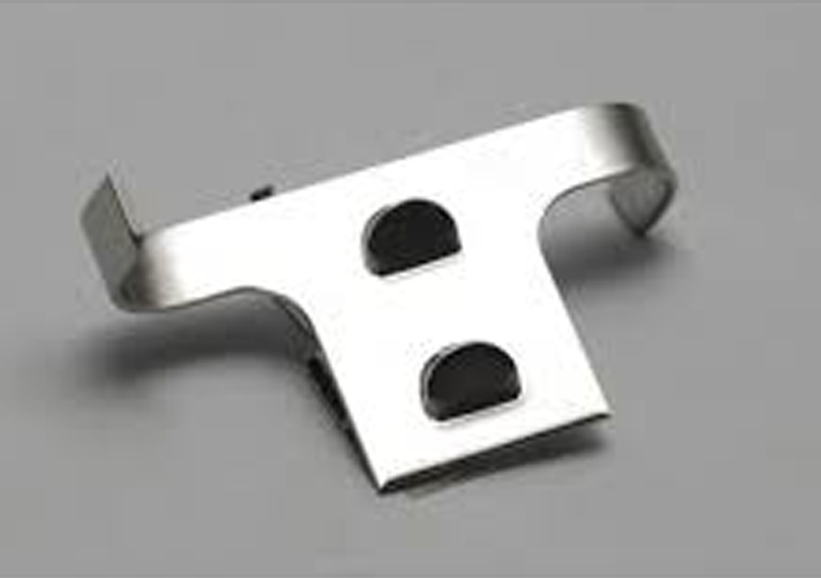

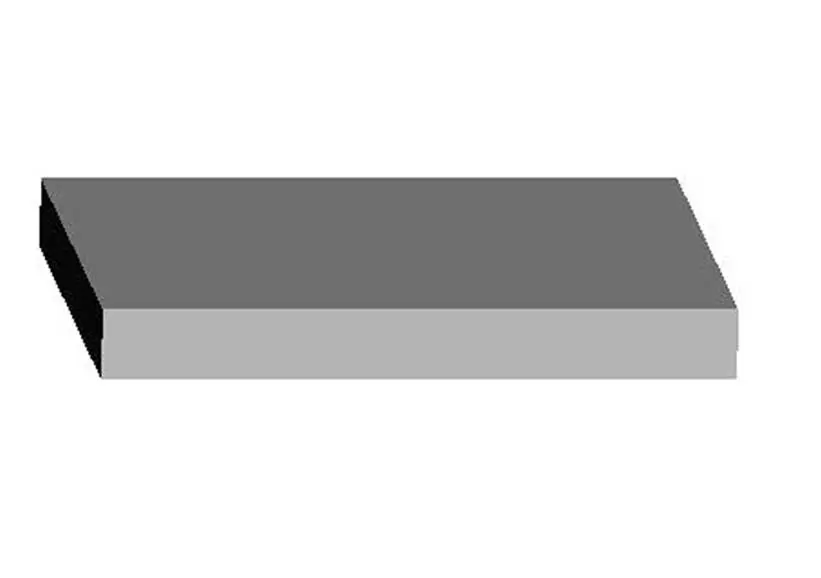

- Hex, C & S-Bars
Range of stainless steel and carbon steel in stock and ready to go including alloy 304, 310,410S and 253MA. Other materials can be supplied on request.
We Create for clients who value unique quality. Projects can start from a simple sketch!
